Advanced Motion Software Functions Dual Tank AB Glue Dispensing Machine With Timing Belt

Name: Advanced Motion Software Functions Dual Tank AB Glue Dispensing Machine With Timing Belt
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-D5331-AB
Price: 6,005.00 USD
Availability: InStock

Ονομασία μάρκας:	HSTECH
Αριθμός μοντέλου:	HS-D5331-AB
Μούβ:	1 τεμ
τιμή:	negotiable
Όροι πληρωμής:	T/T
Ικανότητα εφοδιασμού:	100pc/month

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

Κίνα

Πιστοποίηση:

CE,ISO

Όνομα προϊόντος:

Μηχάνημα διανομής

Δραστηριακό εύρος X/Y/Z:

500*300*300*100mm

Σύστημα κίνησης:

Να περπατήσει μηχανή + ζώνη συγχρονισμού

Λειτουργία ελέγχου:

Έλεγχος κάρτας πίνακα

XYZ Moving Max Speed:

300 mm/s

Εγγύηση:

1 Έτος

Συσκευασία λεπτομέρειες:

Ξύλινος

Δυνατότητα προσφοράς:

100pc/month

Επισημαίνω:

dual tank glue dispensing machine

AB glue dispensing machine with timing belt

motion software glue dispensing machine

Περιγραφή του προϊόντος

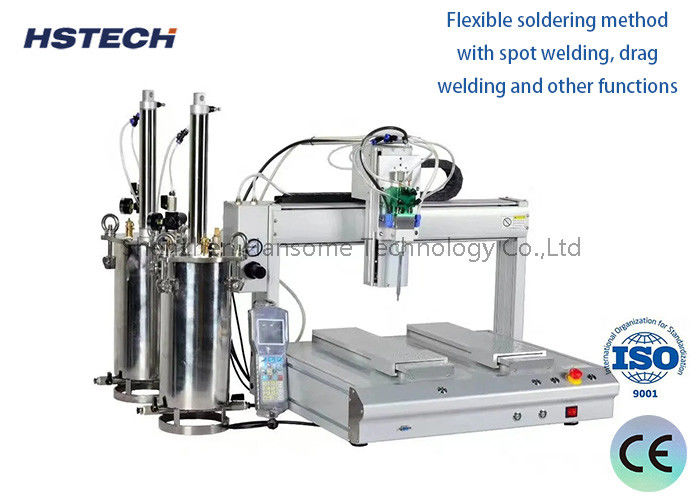

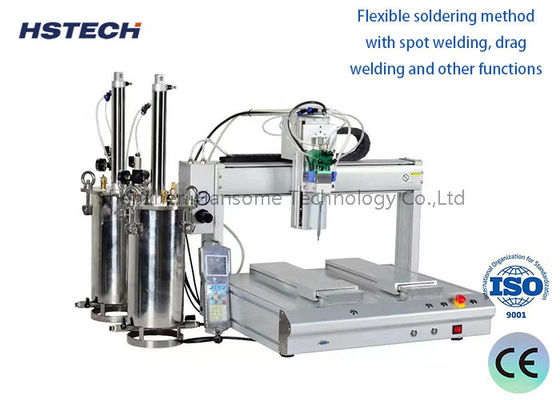

Advanced Motion Software Functions Dual Tank AB Glue Dispensing Machine With Timing Belt

Product Overview

The HS-D5331-AB dual tank glue dispensing machine is a high-precision automated dispensing equipment independently developed by MSTECH. Designed for AB two-component adhesive dispensing applications, this system integrates stable fluid control with a multi-axis motion system to deliver consistent, accurate glue output for diverse industrial bonding, sealing, and potting processes. It supports customized glue mixing ratios and flexible configuration options to match varied production requirements across electronics, automotive, new energy, and other manufacturing sectors.

Key Features

User-Friendly Programming & Powerful Drawing Functions: Intuitive teach pendant programming system supports drawing points, straight lines, surfaces, arcs, circles, and continuous tweening of irregular curves for complex 3D non-planar dispensing paths.
Fully Customizable Dispensing Parameters: Programmable glue output volume, dispensing travel speed, and glue stop timing ensure repeatable results for mass production.
Stable & Leak-Proof Dispensing Control System: Dedicated controller maintains ultra-stable glue extrusion with zero leakage, reducing material waste and workpiece contamination.
Multi-Surface Dispensing Compatibility: Rapidly completes dotting, line drawing, and circular dispensing on inner walls, outer walls, vertical planes, gaps, and spherical surfaces.
Highly Customizable Configuration: Optional custom fixtures, specialized glue guns, dedicated controllers, heating and temperature control devices, and other auxiliary components.
Advanced Motion Software Functions: Built-in control software includes regional display and translation rotation operation for convenient program editing and adjustment.
High-Performance Motion Control Technology: X/Y/Z three-axis system with trapezoidal acceleration/deceleration algorithm, speed preview, and micro line interpolation for smooth, high-precision movement.

Applicable Adhesive Types

This dispensing machine supports a wide range of industrial glues and pastes including silicone, EMI conductive adhesive, UV adhesive, epoxy resin adhesive, sealant, PUR hot melt adhesive, grease, silver glue, red glue, self-adhesive, solder paste, and heat dissipator paste.

Technical Specifications

Model	HS-D5331-AB
X/Y/Z Working Range	500300300*100mm
XYZ Moving Max Speed	300mm/s
Dispensing Speed	10-150g/5s (based on 1:1 glue proportion)
AB Glue Tank	Tank capacity configured as required by glue volume
AB Glue Mixing Ratio	Standard 1:1, custom ratio available upon request
Drive System	Stepping motor + Timing belt
Repeatability	±0.01mm
Dispensing Precision	Amount tolerance ±1%, Mixing Ratio tolerance ±1%
Programming Method	Teach pendant
Control Mode	Board card control
Machine Weight	45kg
Overall Dimension (L×W×H)	630×620×610mm
Power Supply	AC110-220V, 50/60Hz, Rated Power 300W

Application Advantages

Combining flexible programming, high motion accuracy, and stable AB glue fluid control, the HS-D5331-AB dual tank dispenser greatly improves production efficiency and dispensing consistency. Its customizable hardware and process parameters make it an ideal automated dispensing solution for standardized and customized industrial manufacturing.
