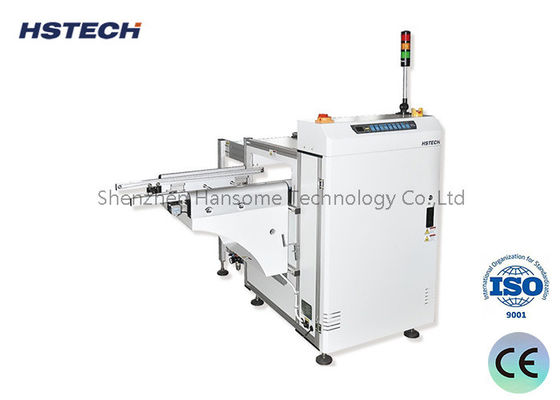

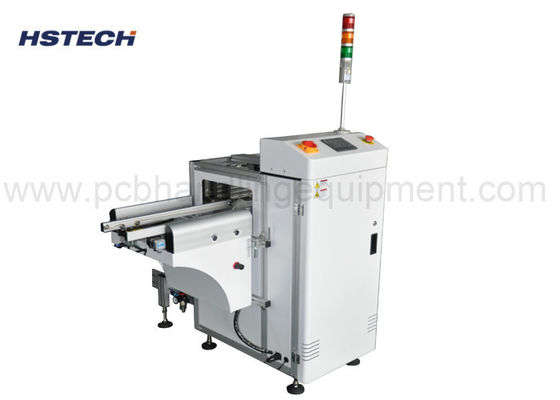

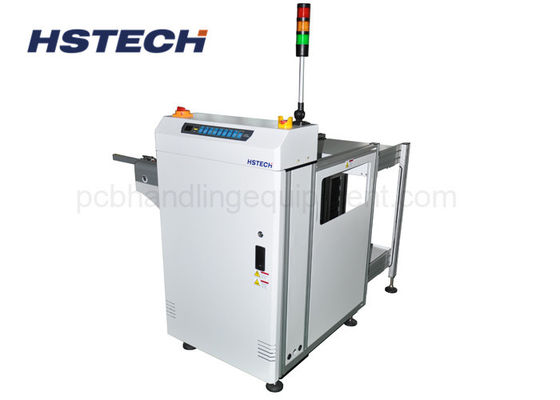

Double Magazine 90 Degree Unlaoder L Type Module Design With SMEMA Compatible

Ονομασία μάρκας:	HSTECH
Αριθμός μοντέλου:	HS-LD250
Μούβ:	1 τεμ
τιμή:	negotiable
Όροι πληρωμής:	T/T
Ικανότητα εφοδιασμού:	100 PC/μήνα

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

Κίνα

Πιστοποίηση:

CE,ISO

Όνομα προϊόντος:

Φορτωτής PCB

Πίεση αέρα:

4-6 Μπαρ

Τροφοδοτικό:

AC110V/220V,50/60Hz

Πάχος PCB:

Ελάχιστο 0,4 mm

Λειτουργία:

Μπροστινή λειτουργία

Εγγύηση:

1 Έτος

Συσκευασία λεπτομέρειες:

Ξύλινος

Δυνατότητα προσφοράς:

100 PC/μήνα

Επισημαίνω:

Double Magazine PCB unloader

90 degree L type unloader

SMEMA compatible PCB module

Περιγραφή του προϊόντος

Double Magazine 90 Degree Unloader L-Type Module Design with SMEMA Compatibility

Our PCB Loader serves as essential front-end automation peripheral equipment for complete SMT production lines. Engineered to automatically feed bare PCBs, it enables stable and seamless PCB conveying across pick-and-place machines, printers, and other SMT process equipment. Designed to meet the high-standard electronic assembly requirements of EMS factories, PCB manufacturers, and electronic contract manufacturers, this loader combines high running speed, extended service life, and comprehensive PCB protection. Fully SMEMA signal compatible, it seamlessly integrates with all mainstream international SMT equipment brands to establish fully automatic linkage production lines.

Core Product Features

Fully Enclosed Anti-Dust Structure: Complete cabinet enclosure effectively isolates dust, debris, and workshop particles, preventing circuit board surface contamination, scratches, and oxidation during feeding.
Visual Observation Window: Transparent window allows clear monitoring of PCB feeding, conveying, and magazine replacement status without opening the machine cover.
SS304 Stainless Steel Machine Body: Premium stainless steel construction provides rust resistance, corrosion resistance, high hardness, and deformation resistance for 24-hour continuous operation.
Reinforced Robust Mechanical Frame: Thickened steel profiles optimize mechanical balance and vibration suppression during high-speed operation.
Smooth Parallel Width Adjustment: Precision adjustment mechanism enables smooth track width modification for different PCB sizes without skewing or jamming.
Triple Magazine Rack Loading Capacity: Supports 3 magazine racks simultaneously (1 upper, 2 bottom) to reduce manual replacement frequency and extend automatic feeding time.
Pneumatic Top & Bottom Magazine Clamps: Pneumatic locking clamps securely fix magazine racks during operation to prevent displacement and vibration.
Zero PCB Breakage Guarantee: Optimized soft contact conveying belt, precise speed control, and buffer feeding design eliminate PCB cracking and edge damage.
Full SMEMA Signal Compatibility: Standard SMEMA communication interface enables automatic linkage with upstream and downstream SMT equipment.

Complete Technical Specifications

Parameter	Specification
Full Product Name	SS304 Anti-Dust SMEMA Compatible PCB Loader Machine
Standard Conveyor Speed	0.5–20M/Min (custom speed available)
PCB Transport Height	910±30mm (universal SMT equipment standard)
Single PCB Loading Cycle	Approximately 6 seconds per board
Magazine Replacement Time	Approximately 30 seconds for full magazine swap
Conveying Direction	Left to Right (L→R) or Right to Left (R→L), switchable
Operation Mode	Front panel operation
Track Fixed Side	Front fixed side (customized layout available)
Standard Power Supply	AC 220V, 50/60Hz, tolerance ±10%
Working Air Pressure	4–6bar compressed air supply
Minimum PCB Thickness	0.4mm
Magazine Configuration	Upper layer: 1 rack; Bottom layer: 2 racks (3 total)
Optional Magazine Pitch	1mm, 4mm, 10mm pitch (40mm standard)
Linkage Communication	Standard SMEMA industrial signal

Model Selection Guide

Model	HS-LD250	HS-LD330	HS-LD390	HS-LD460
Efficient PCB Length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine Size	14008001200mm	16508801200mm	18009401200mm	180010101200mm
Magazine Size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	180kg	220kg	260kg

Production & Customer Value Advantages

Reduce Manual Labor Cost: Triple magazine design extends continuous automatic feeding time, reducing manual replacement frequency and labor input.

Stabilize Production Yield: Anti-dust enclosure and soft buffer conveying prevent PCB contamination, scratches, and breakage, minimizing defective rates.

Strong Cross-Brand Adaptability: Universal SMEMA interface and standard height connect all mainstream SMT equipment without modification.

Long-Term Low Maintenance: SS304 stainless steel frame and reinforced structure reduce component failure and maintenance expenses.

Flexible Customization Support: Multiple customizable options including conveyor speed, magazine pitch, and track layout.

Diversified Production Adaptability: Stable operation for both mass production and high-mix prototype batches.
